TOP FEATURES
144Hz Game Mode Pro
Dolby Vision
AI Picture
Built in Subwoofer
VIDAA
Dolby Atmos
Specification
NOW, HERE'S THE TECHNICAL BIT…
1000h Consumption HDR(Energy Rating Label):
110 kWh/1000h
1000h Consumption SDR(Energy Rating Label):
63 kWh/1000h
4K HDR Immersive:
Y
AC-4:
Y
ALLM(Auto Low-latency Mode):
Y
AMD FreeSync:
FreeSync Premium
APP list:
Refer to APP sheet
Adapter:
N
Adjustable Stand:
N
Airplay2:
Y
Amazon Alexa:
Built-in Alexa
Angle of visibility（degrees）:
178°
Annual Consumption (Nameplate):
NA
App store:
VIDAA Store
Audio (L/R) Input:
1（mini）
Audio Container Format:
LPCM,MPEG1/2/2.5,WMA,AAC,MPEG-H,FLAC,VORBIS,OPUS
Audio File Extension Name:
.wav/.mp3/.wma/.flac
Audio power:
2*10W
Automatic Brightness Control(ABC) available:
N
Back-cover Material/Color:
Plastic/Black
Backlight technology:
QLED & DLED
Black level:
0.2 nits
Bluetooth:
BT5.0
Boxed dimensions (width x depth x height):
1397×129×846mm
Boxed weight incl. Packaging:
15.6kg
Cable Management:
N
Channel sorting:
Build-in and exportable for PC edit (ChSort)
Color gamut range(DCI-PC3):
0.9
Common Interface (CI+):
Yes
Component YPb(Cb)/Pr(Cr) Inputs:
0
Composite (AV) Inputs:
1（mini）
Container Loading(40HQC):
450
Content Sharing:
Y
DLNA certified:
N
DTS Virtual X:
N
Digital and Analog Tuner:
DVB-T2/T/C/S2/S
Dimensions with stand (width x depth x height):
1234×274×768mm
Dimensions without stand (width x depth x height):
1234×80×717mm
Display Color Depth:
8 Bit + FRC
Dolby Atmos:
Y
Dolby Vision IQ:
Y
Electronic programme guide(EPG):
8 days forward EPG
Energy Efficiency Class HDR(Energy Rating Label):
G
Energy Efficiency Class SDR(Energy Rating Label):
E
Ethernet RJ45:
Y
Favorite channel list:
4
Filmmaker mode:
Y
Frame Design/Material:
Bezelless / Metal
Frequency:
50/60Hz
Front-cover Material/Color:
Plastic/Black
Game Mode Level:
144Hz Game Mode PRO
Game Mode（Input Lag）:
13.9ms
Google Assistant:
N
Google Smart Home:
Y (UK,ES)
HDMI 1:
HDMI2.1 compliant( ALLM, 4K 60Hz)
HDMI 2:
HDMI2.1 (eARC, ALLM, VRR, 4K 144Hz)
HDMI 3:
HDMI2.1 ( ALLM, VRR, 4K 144Hz)
HDMI 4:
NA
HDR game mode:
Y
HDR10+ Adaptive:
Y
HDR: Dolby Vision:
Y
HDR: HDR10+:
Y
HDR: Hybrid Log Gamma (HLG):
Y
HSR:
240 Hz
HbbTV:
HbbTV 2.0.4
Headphone output:
0
Hotel TV:
Y
IMAX Enhanced:
N
LCN Support:
Yes (Depending on location and operator)
Lead content:
Yes -This television contains lead only in certain parts or components ，in accordance with existing exemption clauses under the RoHS Directive.
Local Dimming:
N
Local Dimming Zones:
NA
MEMC(Motion Estimate and Motion Compensation):
Y
MHEG support:
Yes (but only if Certification requires,e.g. Ziggo)
MPEG-H:
Y
Maximum distance between two stands(L):
973mm
Media Player:
Y
Mercury content:
Yes -This television contains mercury only in certain parts or components ，in accordance with existing exemption clauses under the RoHS Directive.
Minimum distance between the stands(L)（Adjustable Stand）:
NA
Multi-Language OSD:
Refer to Area List + PVR sheet
NICAM/A2 Stereo:
Y
Native contrast ratio(typical):
3800：1
Network Standby mode Consumption:
≤2W
Nvidia G-Sync:
N

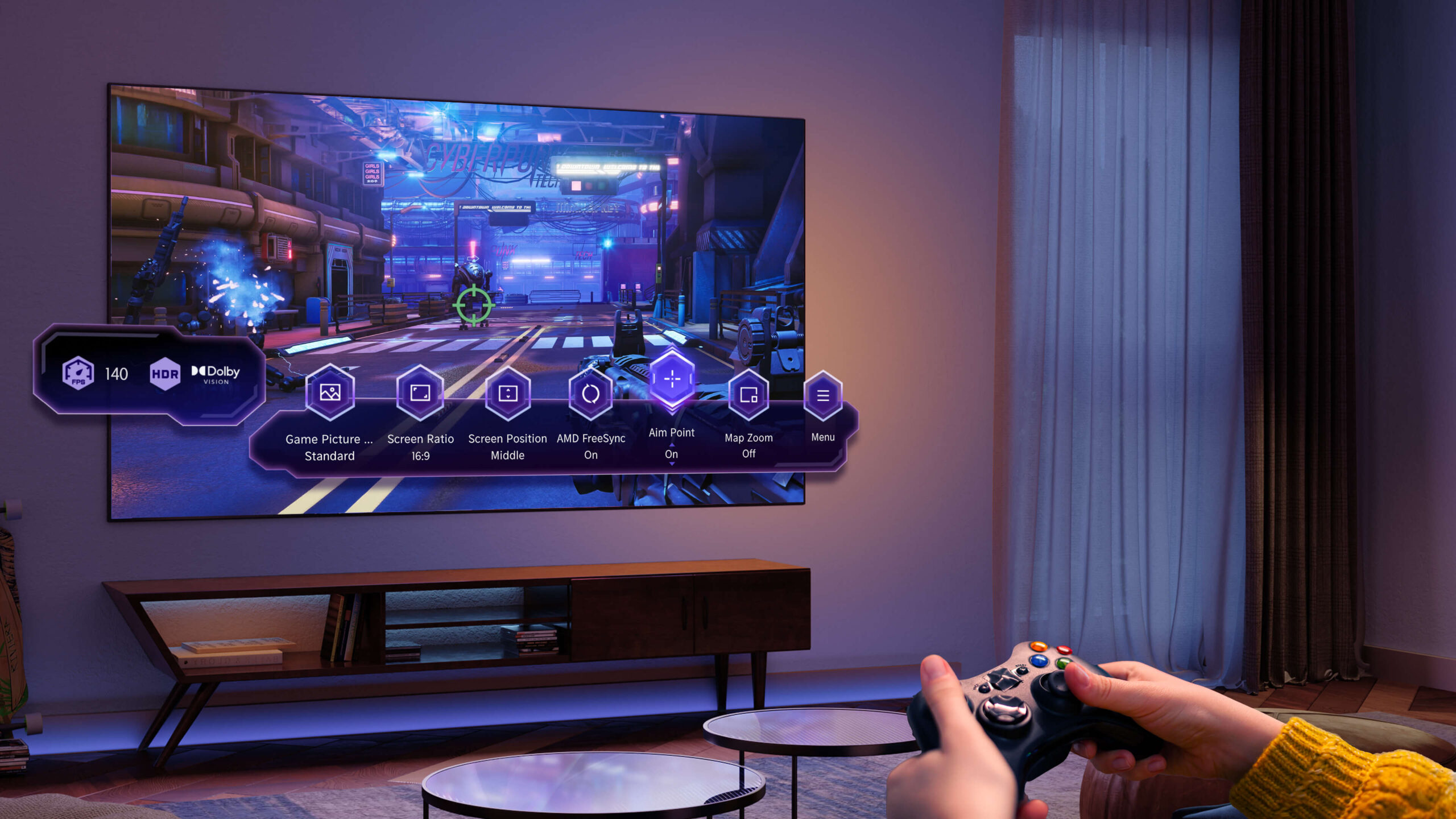

Other Game features:
Game Bar
Other connections:
NA
Other features:
AI HDR Upscaler
Other smart features:
AI Picture, AI Scenario
Other sound enhancement / features:
Hi-Concerto 2.0 TV Mode EzPlay 2.0 WiSA SoundSend
PC Audio Input (3.5mm):
0
PVR function:
Refer to Area List + PVR sheet
Package (Horizontal/Vertical):
Vertical
Panel Aspect Ratio:
16:9
Panel Response Time(ms)(typical):
6 ms
Panel type:
VA
Parental Control:
Y
Photo Container Format:
JPEG,PNG,BMP,GIF
Photo File Extension Name:
.jpg/.jpeg/.png/.bmp/.gif
Power Consumption (Nameplate):
130W
Power Consumption HDR(Energy Rating Label):
110W
Power Consumption SDR(Energy Rating Label):
63W
Power Supply Voltage:
AC 100V~240V
Power cable:
Y
Power off mode Consumption:
NA
Processor:
Quad Core/MT9618
Product weight with stand:
11.3kg
Product weight without stand:
11.1kg
Quantum Dot Technology:
Y
Quick start page:
Y
RF Tuner:
2
Reflective screen:
N
Refresh rate:
144 Hz
Remote Batteries:
AAAx2
Remote control (Number of Keys / Model number):
ERF6M80H
S/PDIF Output:
1
SCART connections:
0
Screen Size(diagonal):
55inch & 139cm
Screen mirroring:
Screen Sharing
Screen mirroring compatibility:
Android
Second Remote Control (Model number):
N
Series:
E7Q PRO
Single stand:
N
Sleep timer:
Y
Smart platform/User Interface:
VIDAA U8.5
Smartphone app:
VIDAA
Sound processing:
Dolby MS12, DTS X
Speaker Power:
2*12W
Speakers:
2.0 CH
Stand area (LxW):
973×274 mm
Stand colour:
Black
Stand material:
Plastic
Standby mode Consumption:
≤0.5W
Subwoofer:
0
TCON Color Depth:
8 Bit + FRC
TV Brightness(nits)（Typical Value）:
330nits
TV Peak Brightness(nits) and Duration(s):
NA
TV colour:
Black
TV material:
Plastic
Teletext Support:
Y
Time Shift:
Refer to Area List + PVR sheet
Twin tuner:
N
UHD Premium Certified:
N
USB 2.0:
2
USB 3.0:
0
Upscaling picture enhancement:
AI 4K Upscaler
User Equalizer:
Y
User Manual:
Y
VESA Wall Mount Compatible:
200×400mm
VGA connections:
0
VRR(Variable Refresh Rate):
VRR 48-144Hz
Vidaa Voice:
Built-in Vidaa Voice
Video Codec:
MPEG1/2,MPEG4,AVC(H.264),HEVC(H.265),WMV3,VC1,VP8,VP9,AV1
Video File Extension Name:
.mp4/.mov/.mkv/.ts/.avi/.wmv/.flv/.webm
Video Format Decoder:
HEVC(H.265),VP8,VP9,AVC(H.264),MPEG4,MPEG1/2,WMV3,AV1,VC1
Visible Screen Area(cm^2):
8230.1 cm^2
Voice assistant via TV(Far field):
N
Voice assistant via remote:
Y
Web browser:
Yes/Odin
WiFi Built-in:
Y
WiFi technology:
IEEE 802.11 a/b/g/n/ac(2.4G and 5G)
Wide Color Gamut:
Y
Wireless LAN adapter Support:
N
Light sensor:
Y
Screen Size:
55, 65, 100
